ZHONGMAO WALL MATERIALS | CHINA FACTORY
AAC Blocks & ALC Panels for Middle East Construction Projects
AAC blocks and reinforced ALC panels for contractors, distributors and project buyers planning wall systems for Middle East projects.
WHY BUYERS CHOOSE US
Clear product, packing and delivery information before you buy
Construction buyers need product information they can compare with drawings, wall applications and delivery requirements. Share the intended application, dimensions, quantity and destination. We can then discuss product options, packing and export documents for that enquiry.

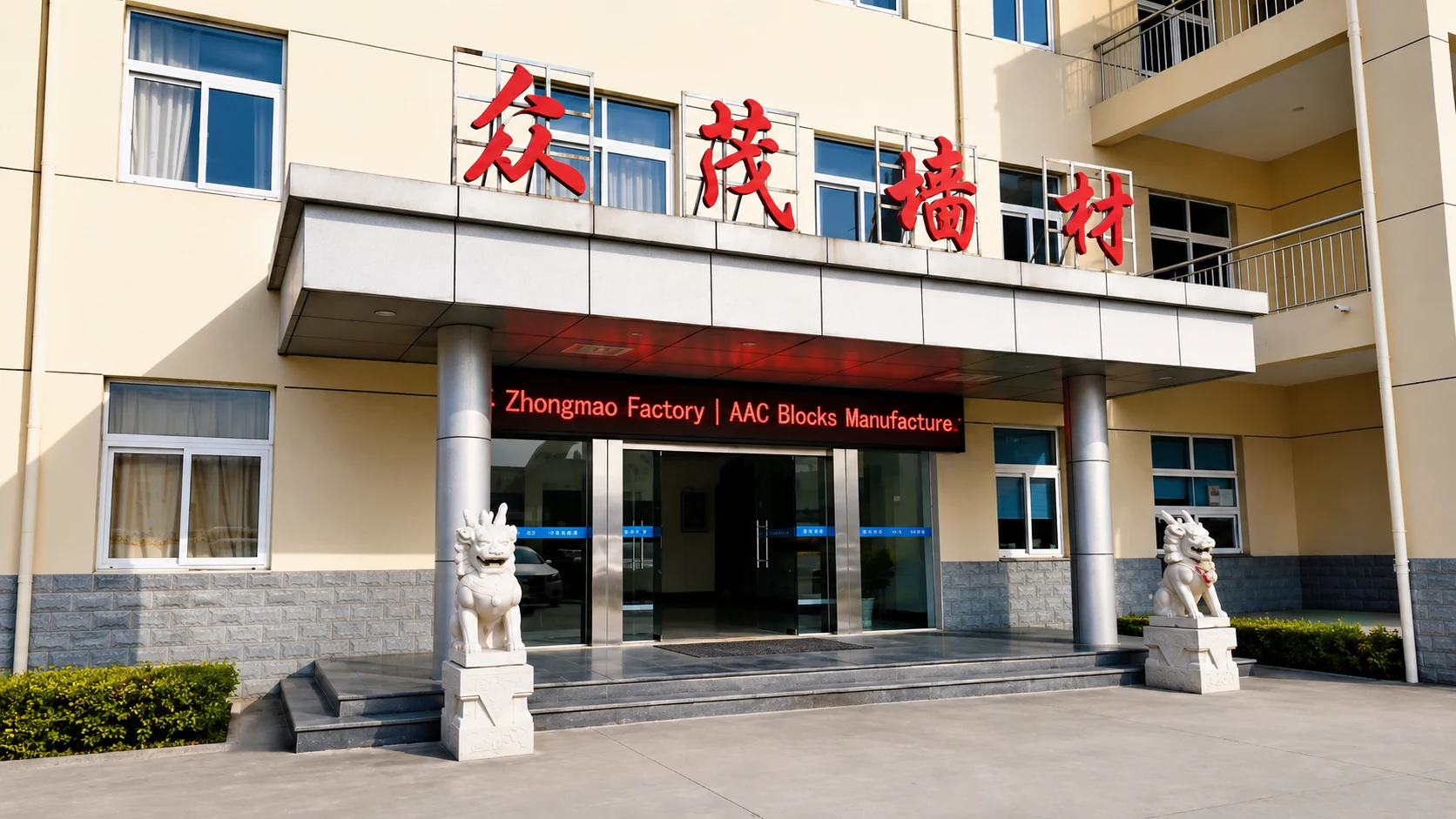

REAL FACILITY & MATERIALS
See the supplier behind the quotation
PRODUCTION LAYOUT

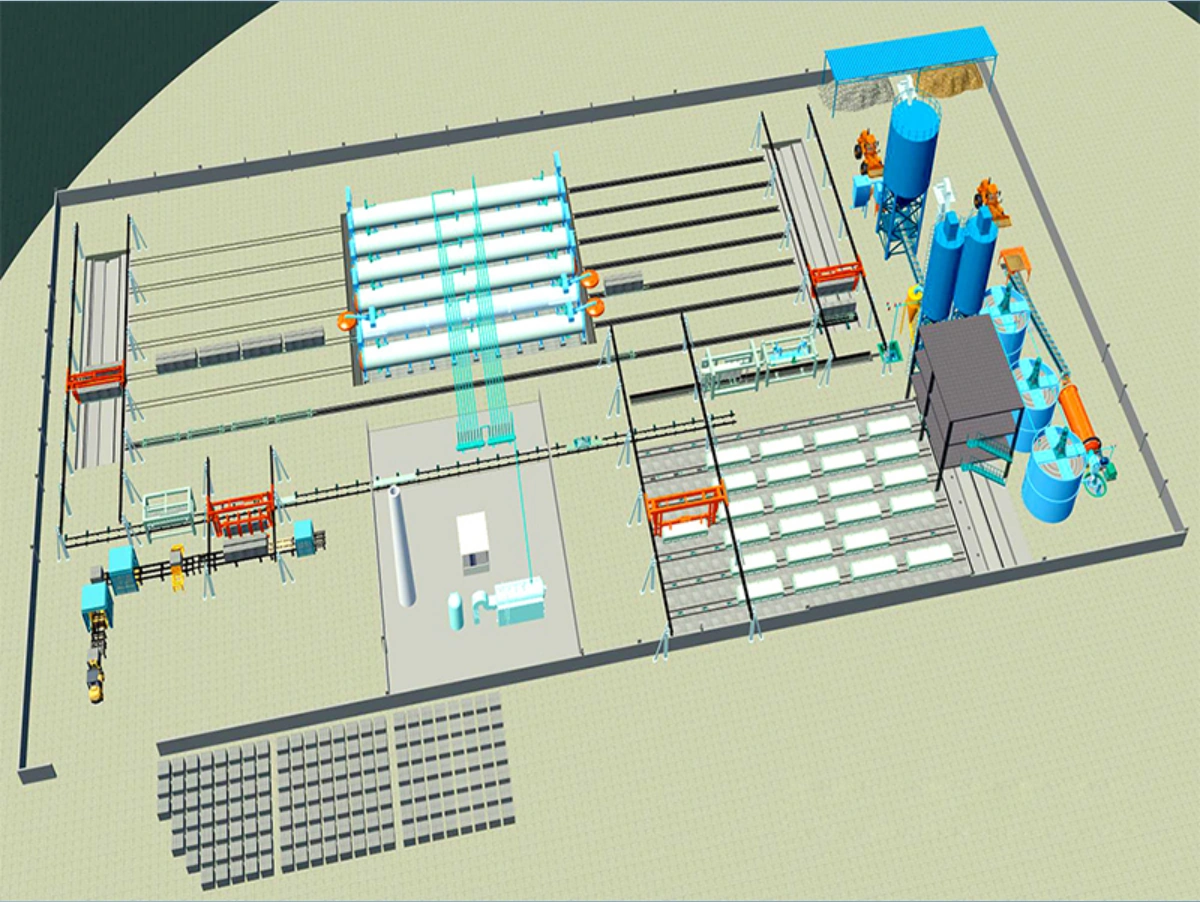

AAC & ALC Production Line Layout
A reference layout showing the coordinated production, curing, handling and finished-product areas of an AAC and ALC manufacturing line.

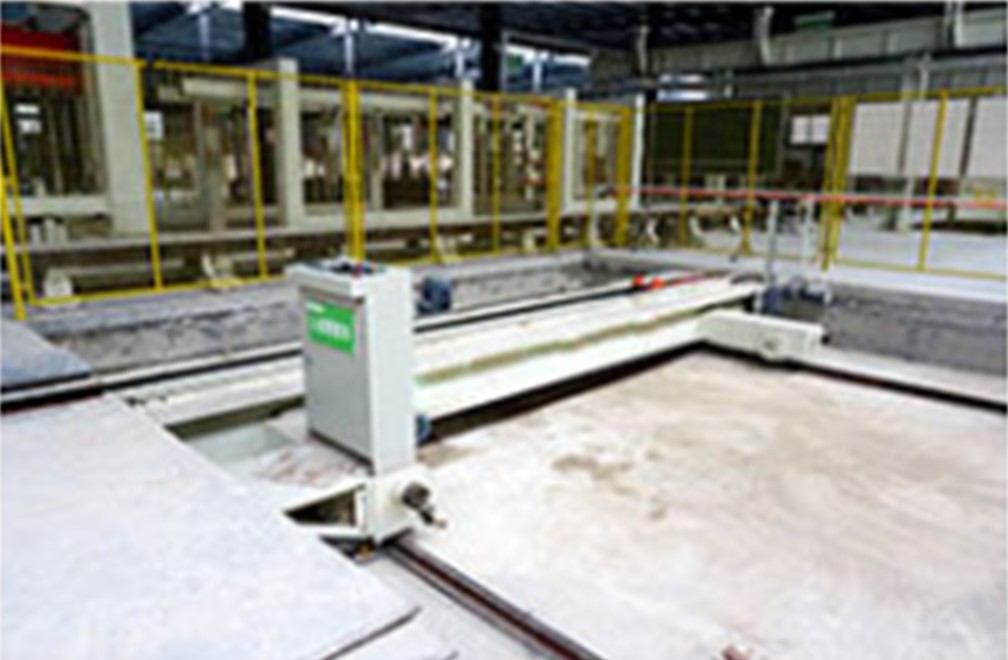

FACTORY OPERATIONS
Workshop Production Process

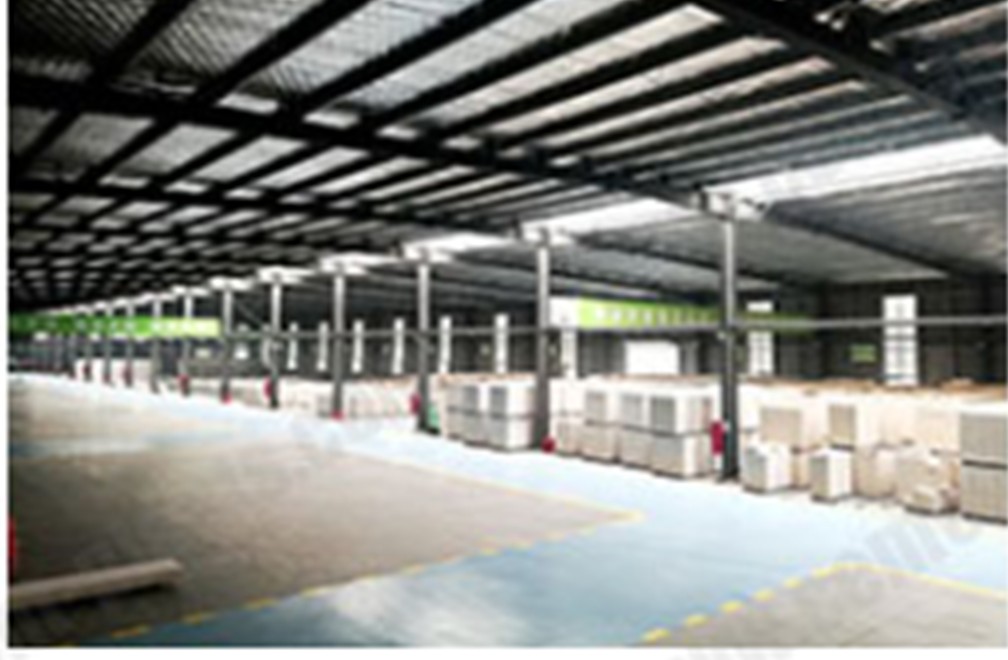

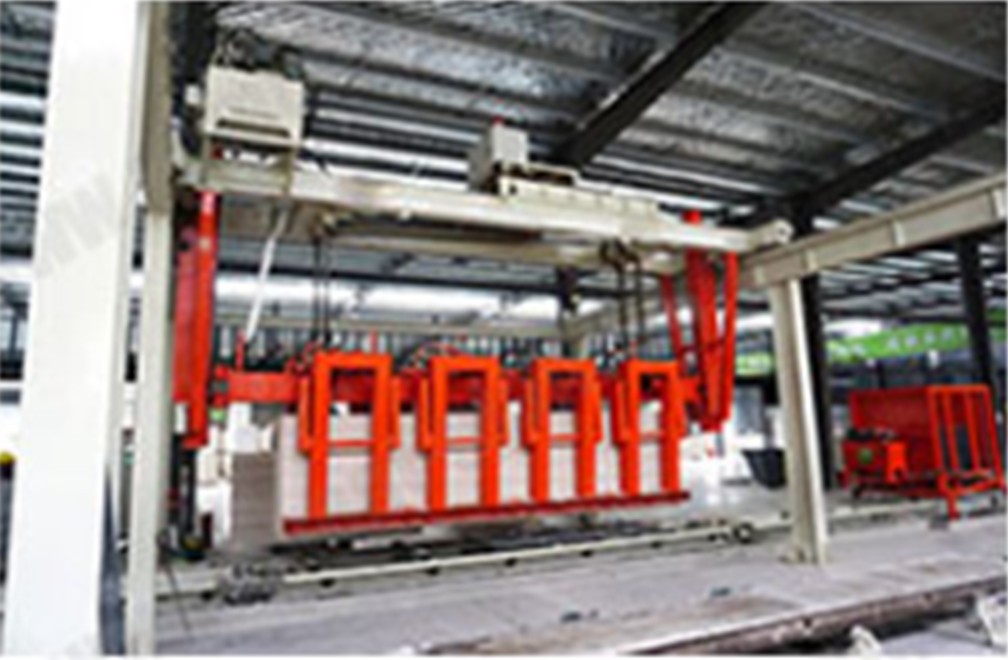

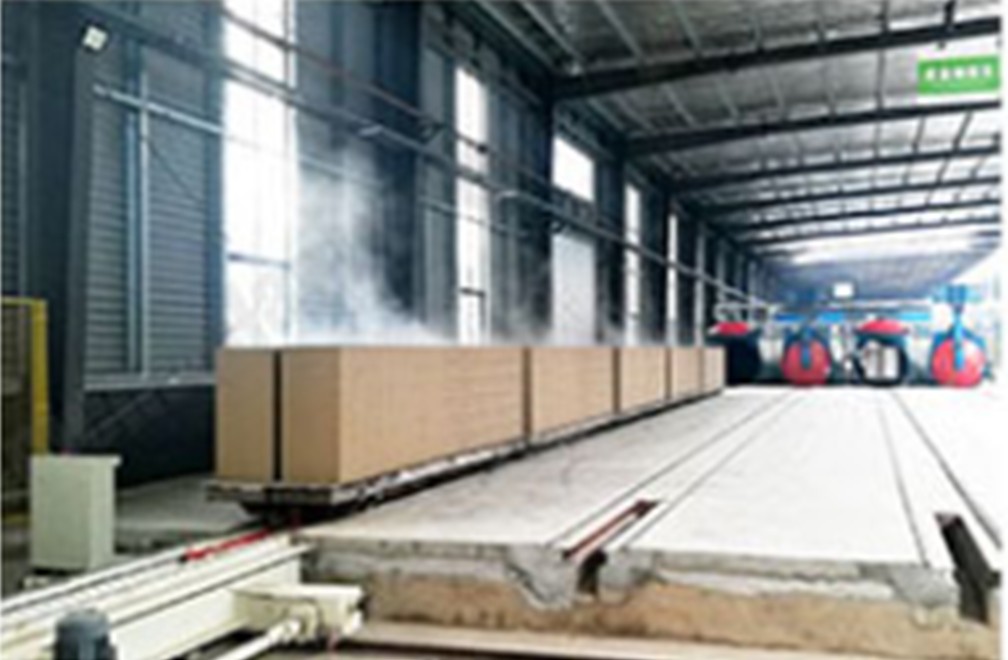

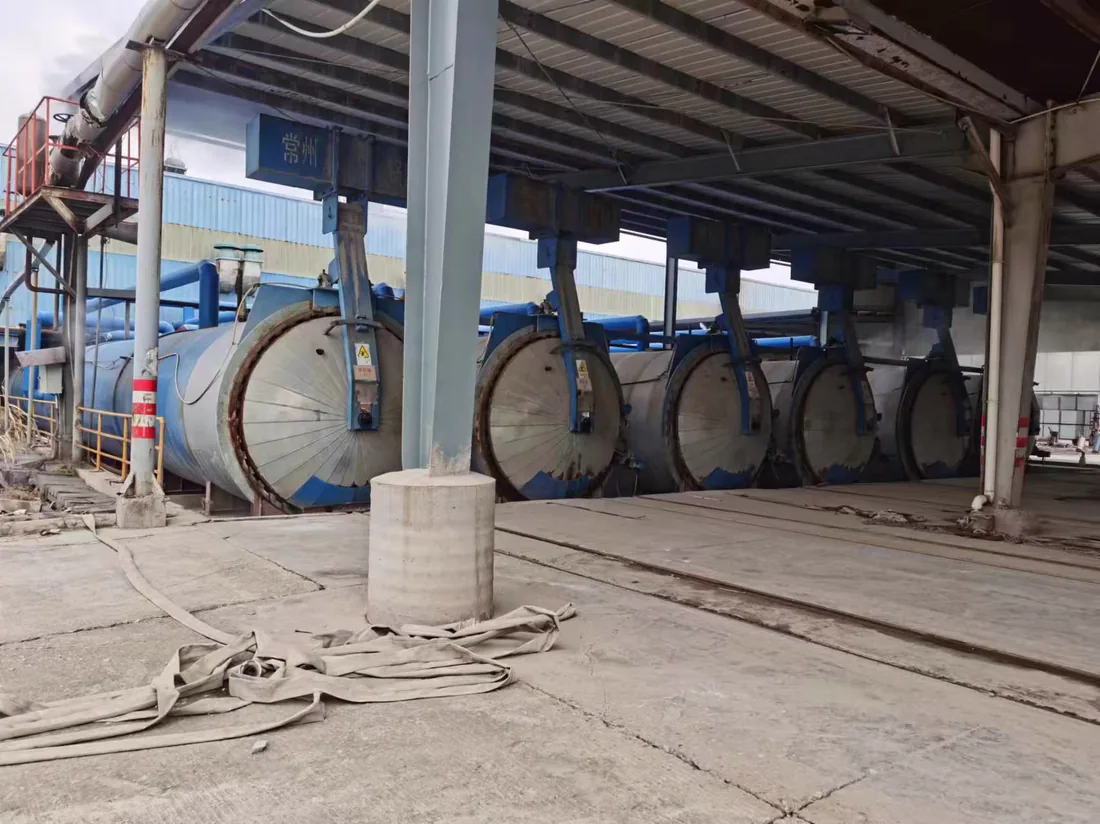

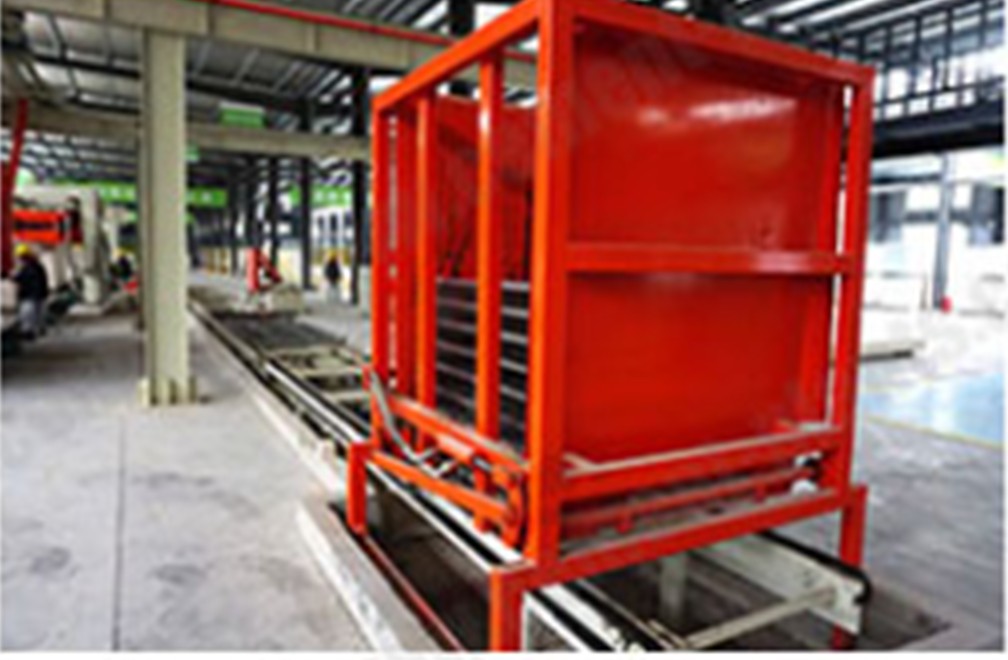

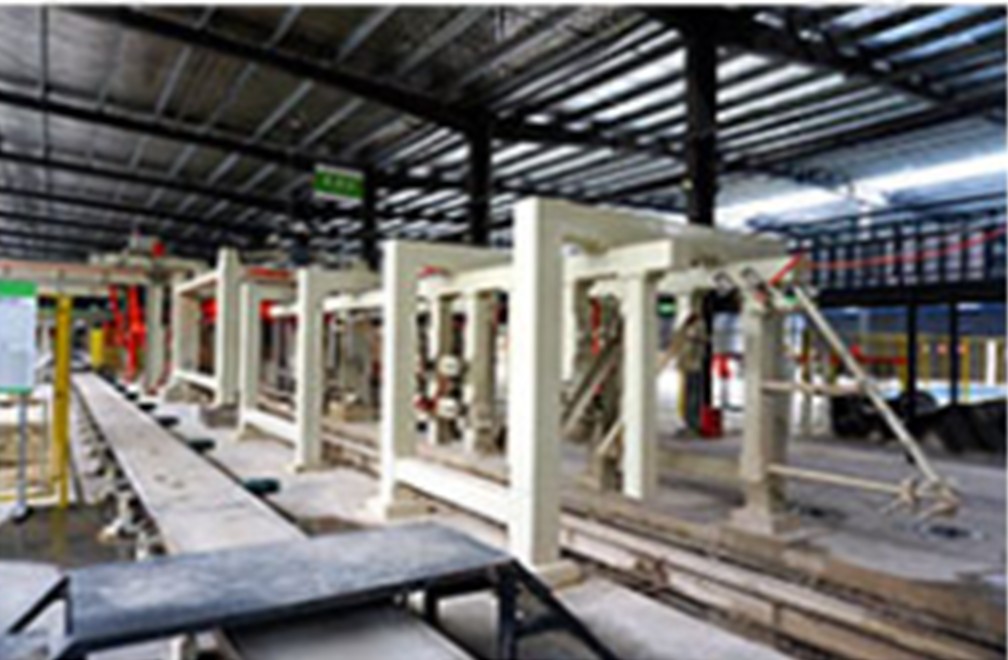

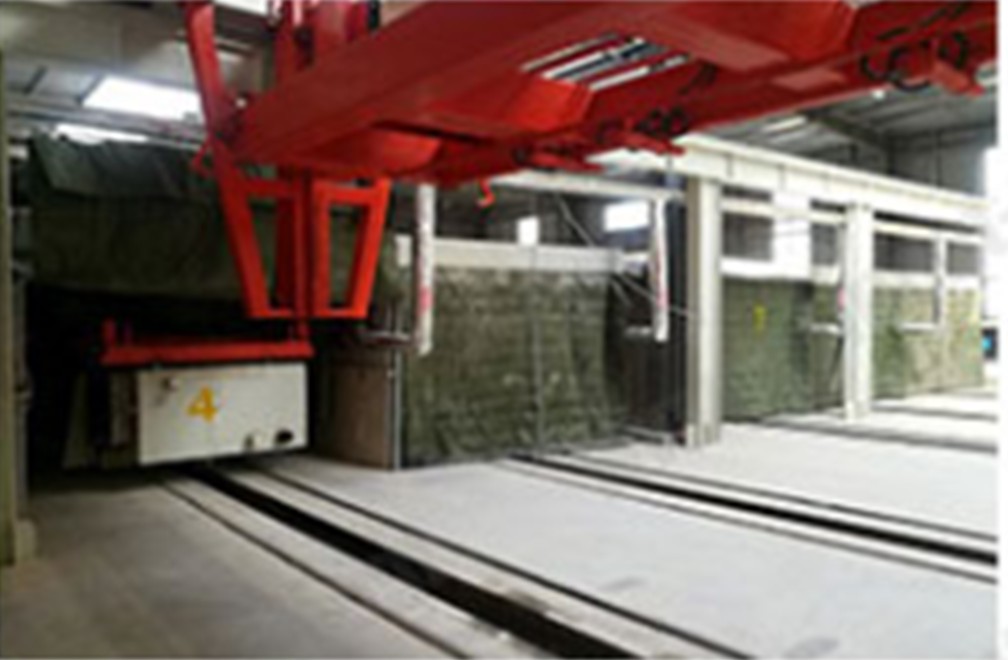

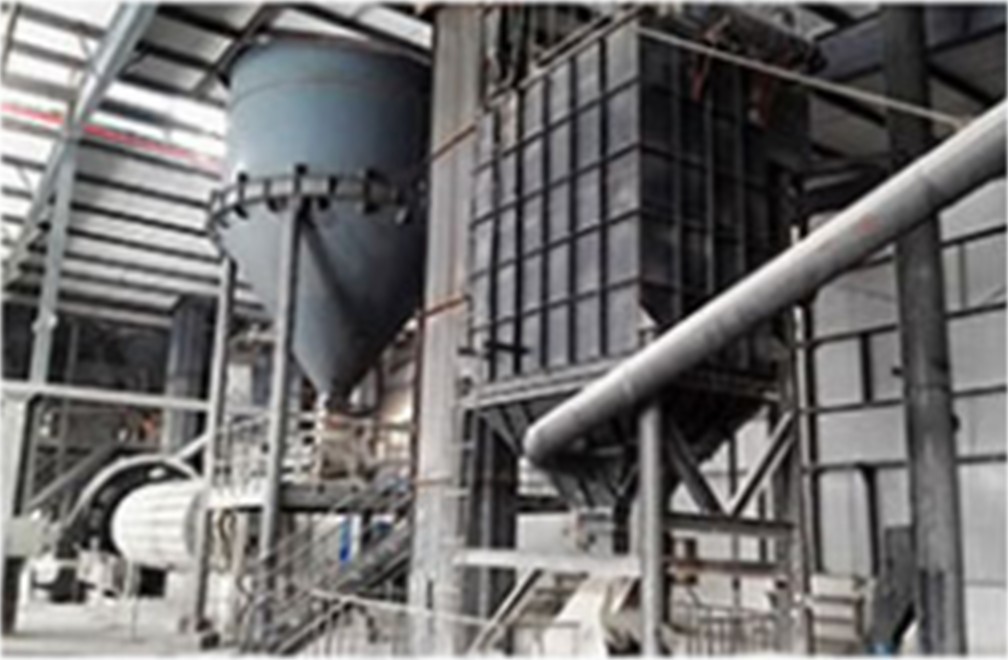

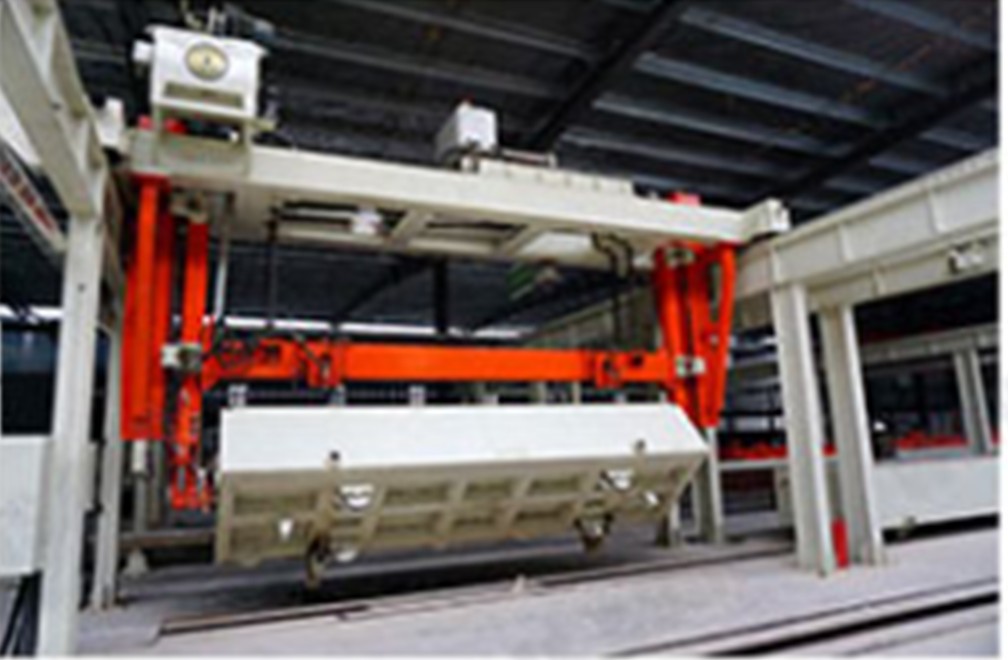

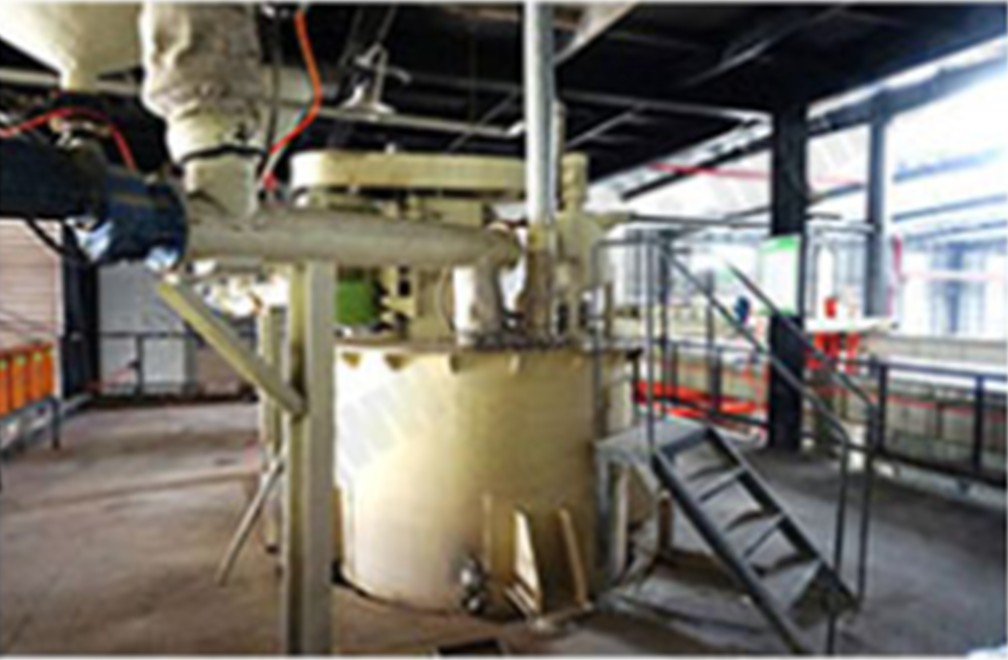

From raw-material preparation through final storage, our AAC and ALC production process is organised around controlled batching, forming, curing, cutting, autoclaving and finished-product handling.
Production routing and equipment configuration are adjusted to the ordered AAC block or ALC panel specification.

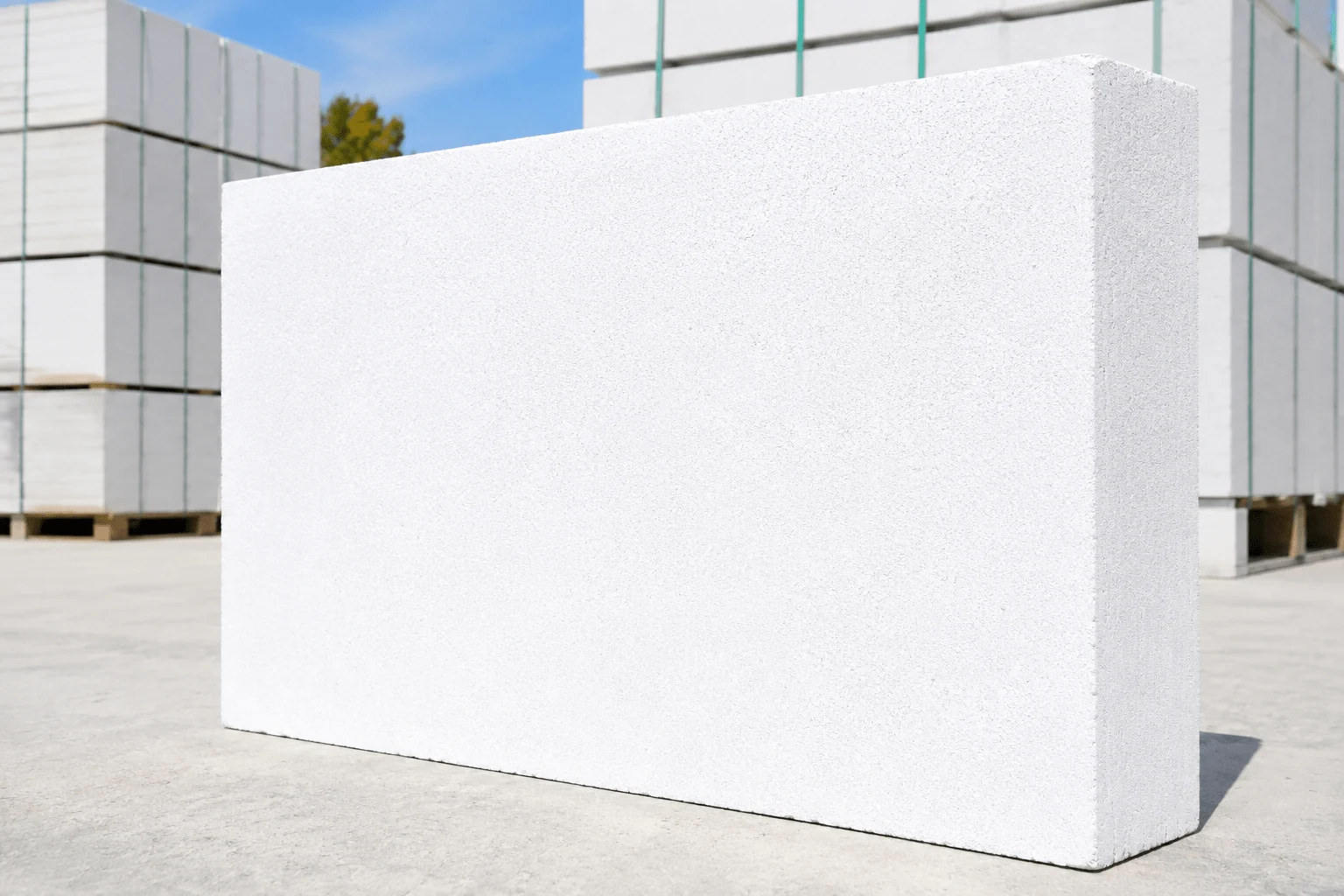

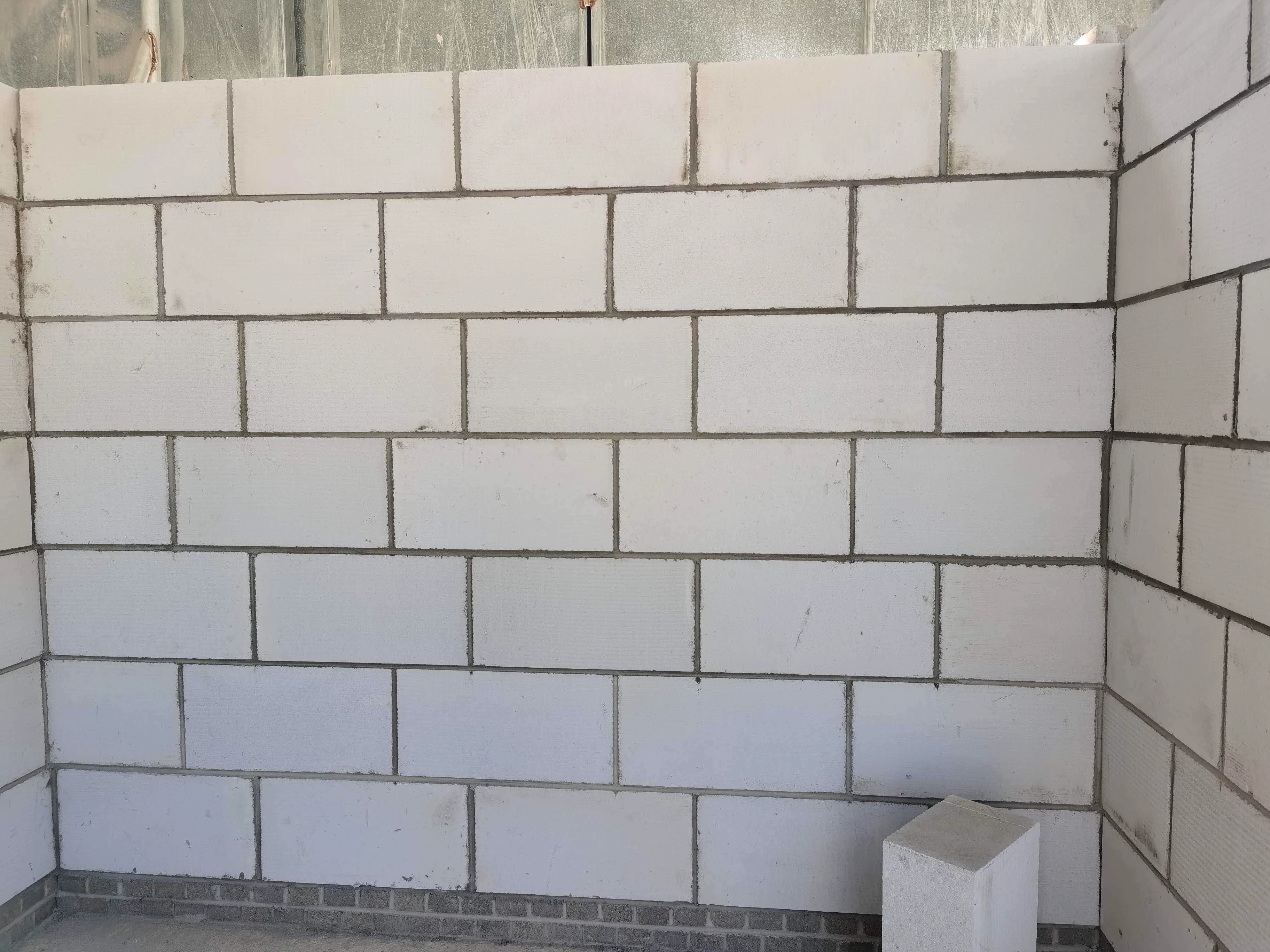

AAC BLOCKS
For lightweight masonry walls
AAC blocks suit wall applications where a lightweight masonry unit is being evaluated. Final selection should follow project drawings, local requirements and the responsible design team review.

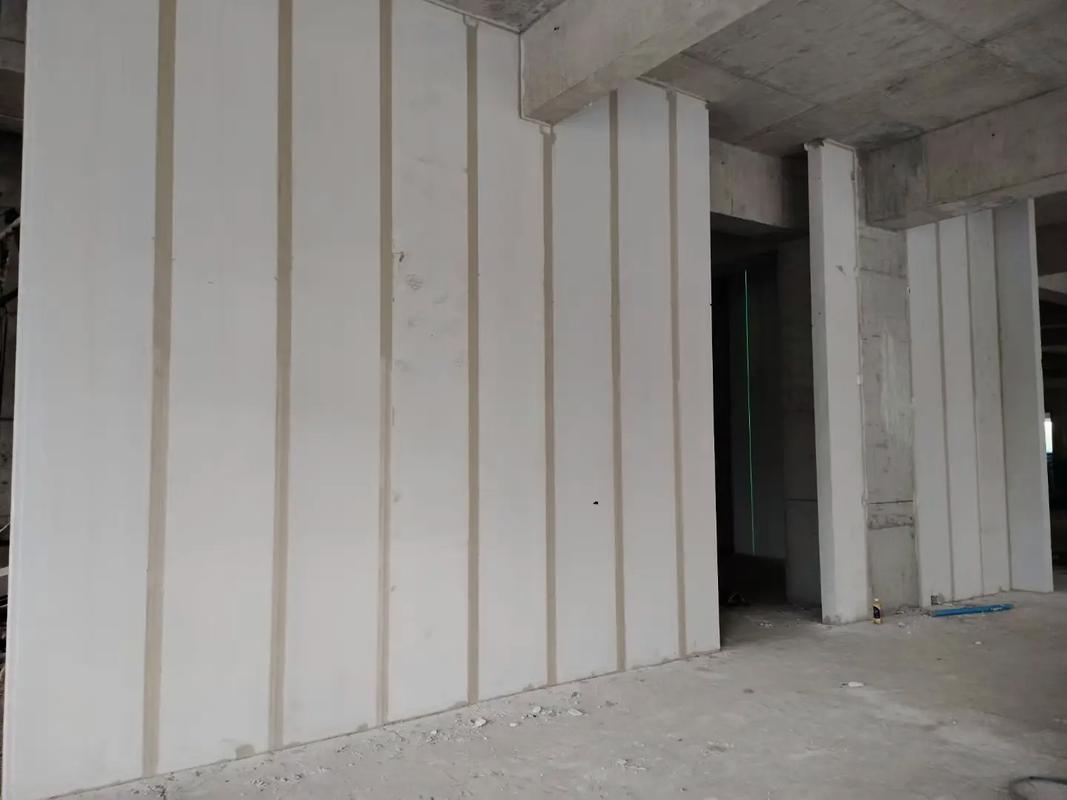

ALC WALL PANELS
For faster panel installation
Reinforced ALC panels can be considered where larger wall elements and planned installation sequencing are required. Confirm panel layout, lifting access and connection details for the specific project.
PRODUCT SYSTEMS
Select by application, not just by price

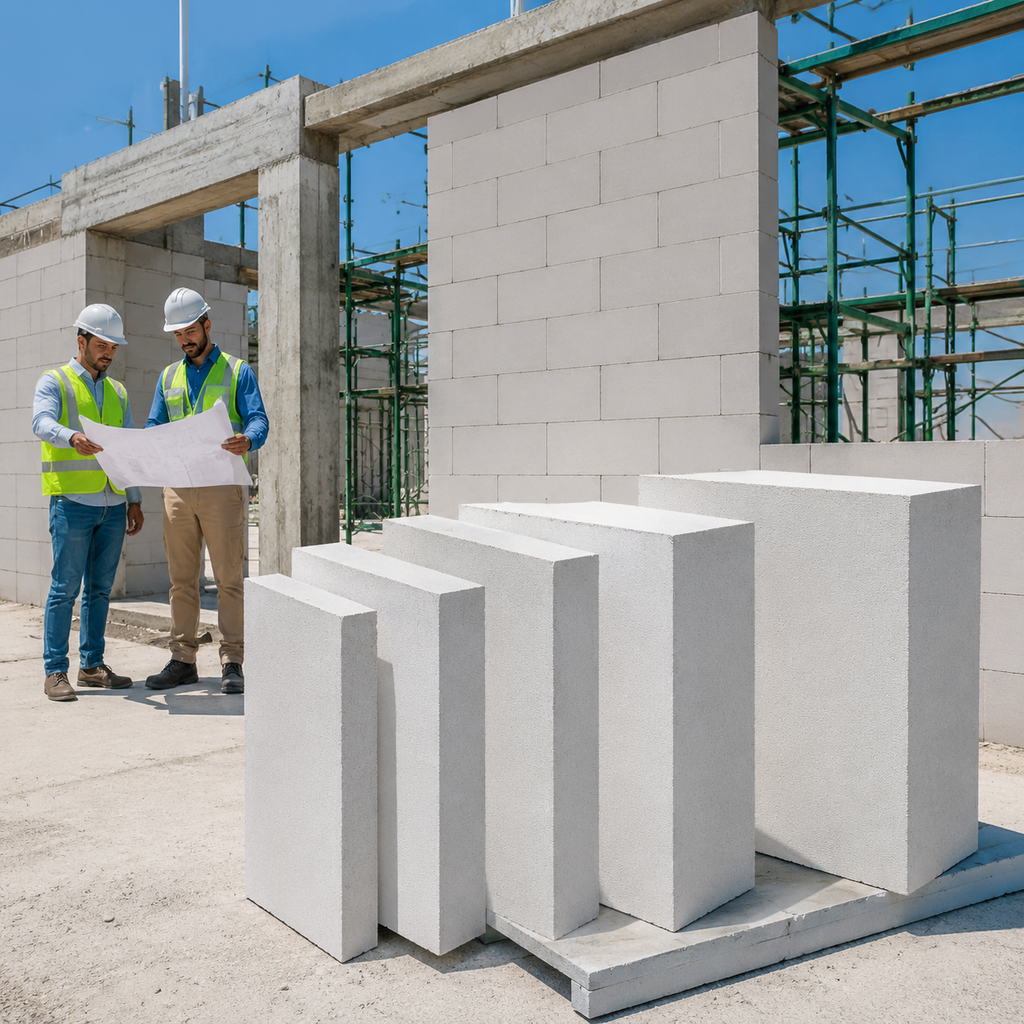

AAC Blocks
Lightweight masonry units for villas, residential buildings, partitions and insulated wall construction.
ALC Wall Panels
Reinforced panels for faster enclosure and partition work in commercial and multi-storey projects.
Before we quote
- Required product and wall application
- Dimensions and estimated quantity
- Destination port or country
- Preferred shipping term
- Any technical or packing requirement
PRODUCT SPECIFICATIONS
AAC Blocks and ALC Panels Specifications
Review core technical data for AAC blocks and ALC panels. Final dimensions, technical requirements and applicable standards are confirmed according to the project, destination market and order quantity.
AAC BLOCK SPECIFICATIONS
AAC Blocks: Core Technical Parameters
Our AAC block range covers standard masonry blocks, enhanced fireproof blocks, high-strength seismic blocks and crack-resistant wall blocks.
| Product Series | Available Dimensions (L x W x H) | Core Technical Parameters |
|---|---|---|
| Sound Insulation & Fireproof AAC Blocks | 600 x 100-250 x 250 mm | Grade B06 A3.5 Average compressive strength: ≥ 3.7 MPa Dry density: ≤ 625 kg/m³ Thermal conductivity: 0.15 W/(m.K) |
| Enhanced Fireproof AAC Blocks | 600 x 30-300 x 250 mm | Grade B05 A3.5 Average compressive strength: ≥ 3.6 MPa Dry density: ≤ 525 kg/m³ Thermal conductivity: 0.13 W/(m.K) |
| High-Strength Seismic AAC Blocks | 600 x 100-250 x 250 mm | Grade B06 A5.0 Average compressive strength: ≥ 5.1 MPa Dry density: ≤ 625 kg/m³ Thermal conductivity: 0.15 W/(m.K) |
| Super High-Strength Seismic Fireproof AAC Blocks | 600 x 200 / 240 x 250 mm | Grade B06 A5.0 Average compressive strength: ≥ 5.1 MPa Dry density: ≤ 625 kg/m³ Thermal conductivity: 0.15 W/(m.K) |
| Enhanced Crack-Resistant AAC Blocks | 600 x 150 / 200 / 250 x 250 mm | Grade B05 A3.5 Average compressive strength: ≥ 3.5 MPa Dry density: ≤ 525 kg/m³ Thermal conductivity: 0.11 W/(m.K) |
Common reference values: freeze-thaw mass loss ≤ 5.0%; drying shrinkage ≤ 0.50 mm/m.
ALC WALL PANELS
ALC Panels: Core Technical Parameters
ALC panels are available for exterior walls, interior walls, floors, roofs, ultra-thin partitions and lintels.
| Panel Type | Typical Available Dimensions (L x W x H) | Core Technical Parameters |
|---|---|---|
| Exterior Wall Panels | Up to 6000 x 600 x 100-200 mm | Grade B05 Average / minimum compressive strength: ≥ 3.5 / ≥ 3.2 MPa Dry density: ≤ 525 kg/m³ Thermal conductivity: 0.13 W/(m.K) |
| Floor Panels | Up to 6000 x 600 x 100-300 mm | Grade B05 Average / minimum compressive strength: ≥ 3.5 / ≥ 3.2 MPa Dry density: ≤ 525 kg/m³ Thermal conductivity: 0.13 W/(m.K) |
| Interior Wall Panels | Up to 6000 x 600 x 75-150 mm | Grade B05 Average / minimum compressive strength: ≥ 3.5 / ≥ 3.2 MPa Dry density: ≤ 525 kg/m³ Thermal conductivity: 0.13 W/(m.K) |
| Roof Panels | Up to 6000 x 600 x 75-250 mm | Grade B05 Average / minimum compressive strength: ≥ 3.5 / ≥ 3.2 MPa Dry density: ≤ 525 kg/m³ Thermal conductivity: 0.13 W/(m.K) |
| Ultra-Thin Panels & Lintels | Ultra-thin: 1800 / 2000 / 2200 x 600 x 50 mm Lintels: up to 3000 x 250 x 200 / 250 mm |
Grade B05 Average / minimum compressive strength: ≥ 3.5 / ≥ 3.2 MPa Dry density: ≤ 525 kg/m³ Thermal conductivity: 0.13 W/(m.K) |
Minimum panel length is 600 mm. Length variation is available in 10 mm increments, subject to final project confirmation.
HOW WE SUPPORT YOUR ORDER
Clear communication from inquiry to loading
- Share the project requirement. Tell us the wall application, quantity and destination.
- Review the product solution. We confirm the suitable system and commercial details.

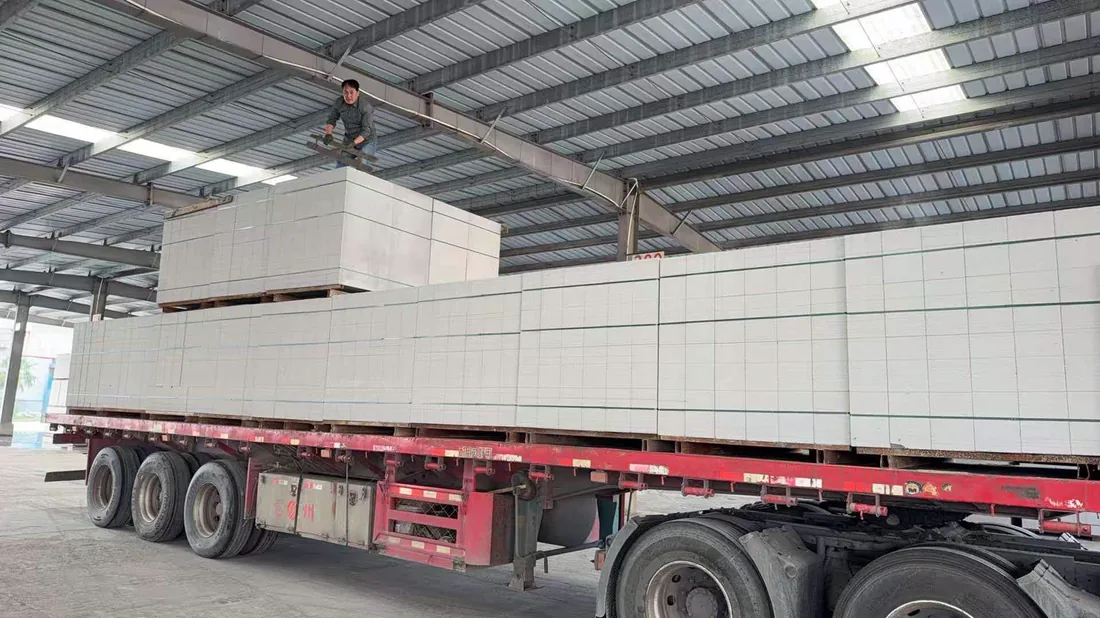

- Confirm production and packing. We align order information before loading.
- Receive shipment documentation. We support the agreed export process and delivery plan.
Questions buyers often ask
Can you provide specifications before we order?
Yes. Send the intended use and requested size so we can prepare the relevant product information.
Do you support export delivery?
We can discuss FOB, CIF or DDP requirements based on your destination and order details.
Which product is suitable for my project?
Our team can help compare AAC blocks and ALC panels based on your wall type and installation needs.
RESOURCES & PROJECT GUIDES
Useful information before you specify or order
DELIVERY PLANNING
AAC Block Delivery and Site Storage: A Practical Checklist for Middle East Projects
Plan site access, unloading, pallet storage, material movement and delivery documents before AAC blocks arrive.
MIDDLE EAST GUIDE
AAC Blocks and ALC Panels for Egypt Projects: A Practical Planning Guide
Plan wall applications, finishes, openings, services, site delivery and quotation details for construction projects in Egypt.
APPLICATION GUIDE
AAC Blocks and ALC Panels for Food and Cold-Chain Facilities: Planning Guide
Plan wall zones, hygienic finishes, doors, service routes, site sequence and export information for food and cold-chain projects.
